D60 HIRE DFG700 TRIPLE HEAD GRINDER SPE DFG700
MSDS SHEET (194.36 Kb)- Accurate grinding of concrete surfaces re-profiling of old concrete floors, removal of old coatings & contaminates, grinding & finishing of resin-based and tiled terrazzo, preparation of thin-film coating
- 11kw 3 phase motor, 2800 rpm 292 kgs in weight.
- A min of 24kva generator is required with a 32amp 5 pin supply a larger 50kva generator is preferred especially for PCD work - wear charge on diamonds extra.
- A 700mm ( 27.6" ) working width triple head planetary grinder with very high production rates on large areas and can be used with both standard grinding plates or fast ix tooling with the use of fast fix backing plates. this machine can do up to 400m2 per day on a non-coated concrete floor with a standard diamond plate.
- Very low hand-arm vibration only 2.08m/s 2 .
| Power | 415V 3PHASE 32AMP 5pin |
|---|---|
| Weight | 292 KGS |
| Stock No. | D60 |
Additional Items
Additional items that will be required to use this machine are:

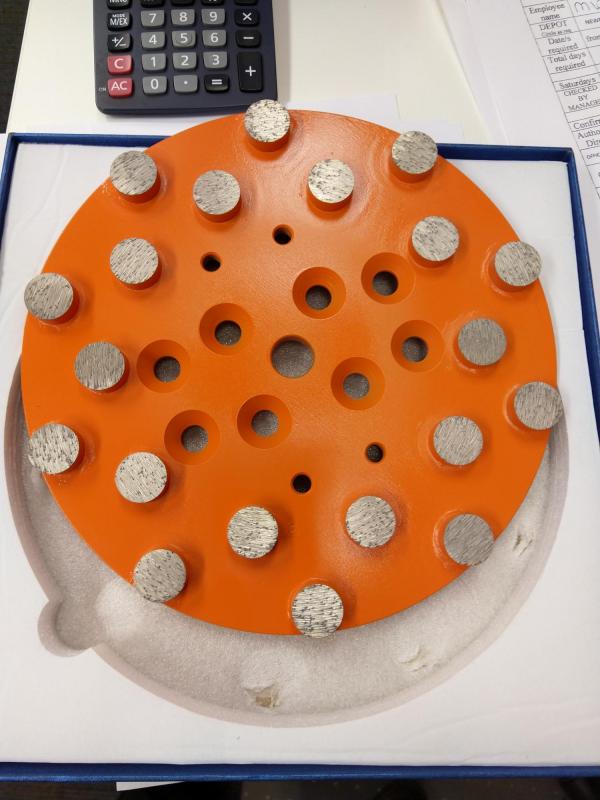

- Diamond plate wear charge per mm £90.00 per plate x 3 = £270.00
- or sale of each plate £350.00 each
- PCD plate wear charge per mm £60.00 per plate x 3 = £180.00
- or sale of each plate £250.00 each

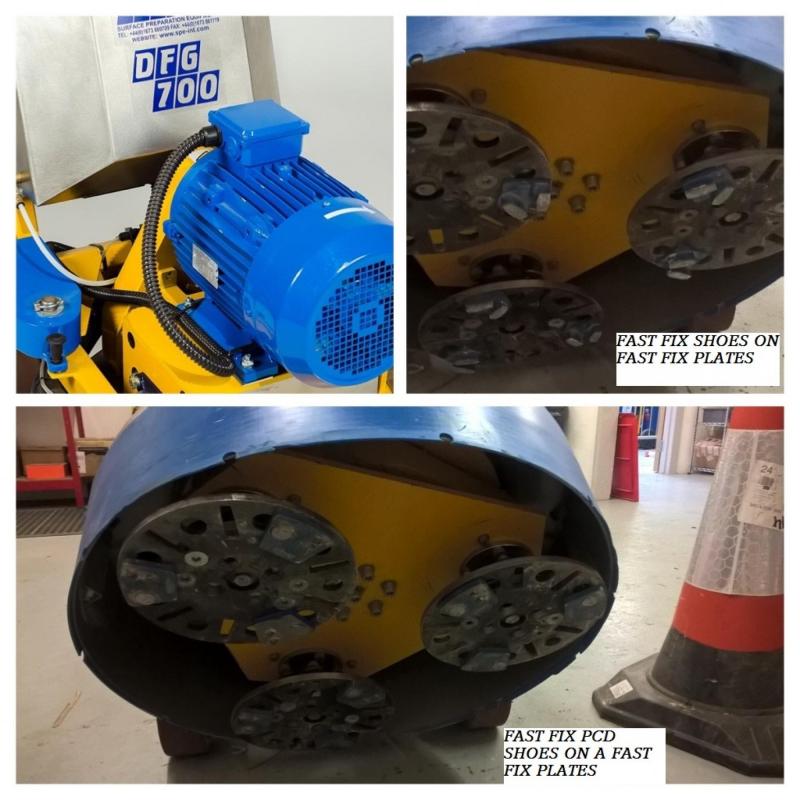

- also fast fix plates and diamond shoes are available as below
Hire Rates
| Day: | 510.00 |
|---|---|
| Weekend: | 680.00 |
| Week: | 850.00 |
Note: any prices or technical details given on these pages are subject to change without prior notice. All prices shown exclude VAT and are subject to availability.
